Introduction

Precision machining plays a crucial role in modern manufacturing, especially when producing components that require reliable power transmission and secure mechanical connections. One of the most widely used tools for creating accurate keyways is the keyway broach set. Designed for efficiency and precision, a keyway broach set enables manufacturers to produce perfectly sized keyways in gears, pulleys, sprockets, couplings, and various machine components.

What is a Keyway Broach Set?

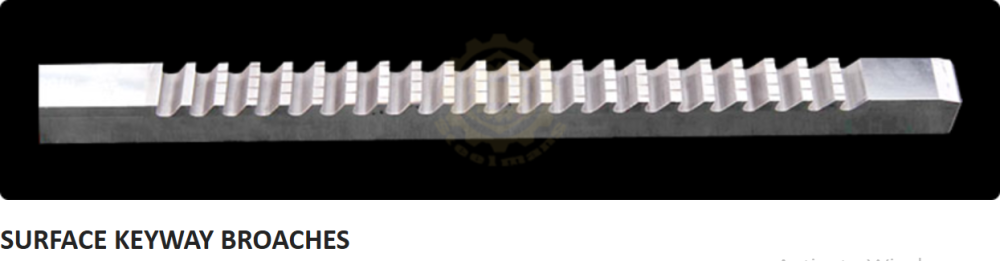

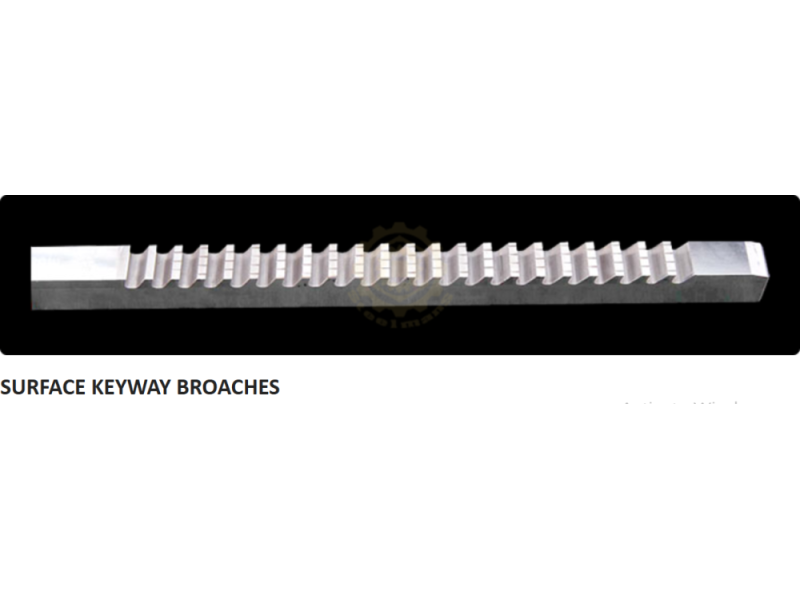

A keyway broach set is a collection of specialized broaching tools used to cut keyways into the bore of a component. The set typically includes:

• Keyway broach
• Guide bushings
• Shims
• Storage case

How Does a Keyway Broach Set Work?

The keyway broaching process is straightforward and efficient:

1. The appropriate bushing is inserted into the workpiece bore.
2. The keyway broach is positioned inside the bushing slot.
3. The broach is pushed through the workpiece using a press.
4. Material is gradually removed to form the keyway.
5. Shims are added for additional passes until the desired depth is achieved.

Benefits of Using a Keyway Broach Set

1. High Precision and Accuracy

A major advantage of a keyway broach set is its ability to produce keyways with tight tolerances.

Benefits include:

• Accurate dimensions
• Consistent results
• Improved component fit
• Superior performance

2. Excellent Surface Finish

Broaching creates smooth and uniform surfaces that often require little or no secondary finishing.

Advantages include:

• Reduced machining operations
• Better component performance
• Improved assembly accuracy

3. Cost-Effective Manufacturing

A keyway broach set provides an economical solution for producing internal keyways.

Manufacturers benefit from:

• Lower production costs
• Reduced setup time
• Faster machining operations
• Minimal material waste

4. Increased Productivity

The broaching process is significantly faster than many traditional machining methods.

Advantages include:

• Quick production cycles
• Higher throughput
• Efficient batch production

5. Versatility

A single keyway broach set can be used to machine various components, including:

• Gears
• Pulleys
• Couplings
• Bushings
• Sprockets
• Machine hubs

Applications of Keyway Broach Sets

Automotive Industry

Used for manufacturing:

• Transmission gears
• Steering components
• Drive shafts
• Pulley systems

Industrial Machinery

Applications include:

• Couplings
• Power transmission equipment
• Machine tool components

Agricultural Equipment

Keyway broach sets help produce durable components used in tractors, harvesters, and farming machinery.

Aerospace Industry

Precision keyways are essential for various aerospace assemblies that require secure torque transmission.

Choosing the Right Keyway Broach Set

When selecting a keyway broach set, manufacturers should consider:

Material Type

Different materials may require specific broach designs and cutting parameters.

Keyway Dimensions

Choose a broach set that matches the required keyway size and tolerance.

Production Requirements

Higher production volumes may require premium-quality broaches for longer tool life.

Quality Standards

Investing in precision-engineered broaching tools ensures better performance and durability.

Conclusion

A keyway broach set is an essential tool for manufacturers seeking precision, efficiency, and reliability in keyway production. Its ability to create accurate keyways with excellent repeatability makes it a preferred choice across automotive, aerospace, industrial machinery, and heavy engineering sectors.

By investing in high-quality broaching tools, manufacturers can improve productivity, reduce costs, and maintain superior component quality.
