Quick Answer:

A staircase controller activates LED strip lights on individual stair treads sequentially — one step at a time — as a person ascends or descends, creating a flowing waterfall lighting effect. Esysense offers the 32-channel PIR staircase controller (up to 32 steps) and the pixel LED variant (up to 512 pixels) for homes, offices, hotels, and malls. A complete 15-step home staircase system (controller + LED strips + driver + sensors) typically costs Rs.3,000–Rs.8,000 — delivers premium visuals and zero electricity waste when unoccupied.

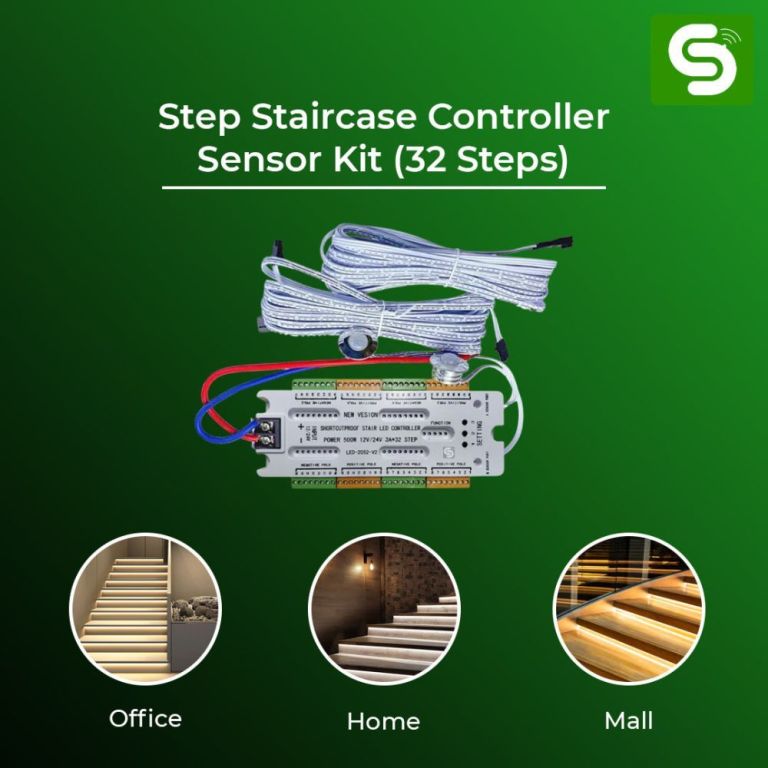

32 Channel Staircase Controller

• Steps Supported: Up to 32 steps

• Detection Method: PIR motion sensors

• Applications: Homes, Offices, Hotels, Restaurants

• Price (Complete System): Rs.3,000–Rs.8,000

• Best For: Most residential and commercial staircase automation projects

Pixel LED Staircase Controller

• Steps Supported: Up to 512 pixels

• Detection Method: PIR motion sensors

• Applications: Premium homes, Commercial buildings, Shopping malls, Architectural projects

• Price: Higher-end system (check site)

• Best For: RGB effects, dynamic animations, and premium staircase installations

Controllers:esysense.com/products/pir-32-channel-staircase-controller-500w

A staircase controller is an electronic device that manages the switching sequence of LED strip lights on individual stair treads. Instead of all steps illuminating simultaneously, the controller activates each step in sequence — from the entry point upward or downward — as a person walks through the staircase. The result is a visually striking waterfall effect that is simultaneously safer, more energy-efficient, and more impressive than always-on or simple on/off staircase lighting.

Installation Guide — 8 Steps

1. Count total steps between floors — this determines the controller channel count needed.

2. Measure each tread width — multiply by W/m strip wattage to get wattage per step.

3. Calculate total wattage (steps x wattage/step) and select an LED driver with 20–30% headroom.

4. Install the LED driver in an accessible wall cavity or electrical enclosure near the staircase.

5. Mount PIR or IR sensors at the top and bottom of the staircase — at ankle height for IR beam sensors.

6. Run a separate pair of DC wires (positive and negative) from the controller to each step position.

7. Install LED strips on each tread (under the nosing overhang in aluminum diffuser channels).

8. Connect: Channel 1 to Step 1, Channel 2 to Step 2, and so on. Connect sensors to top and bottom sensor inputs. Power on and test.

A licensed electrician is recommended for the mains (220V AC) LED driver connection. DC wiring to each step can typically be done by a competent installer.

Frequently Asked Questions

Q: How many steps can an Esysense staircase controller handle?

A: The Esysense 32-channel controller handles up to 32 steps. The pixel LED controller handles up to 512 pixels — suitable for RGB effects across multiple steps.

Q: Can the staircase controller operate only at night?

A: Yes — Esysense staircase controllers with built-in LDR automatically disable during daylight hours and enable only in low-light conditions.

People Also Ask

Q: What is a staircase LED controller and how does it work?

A: A staircase controller activates LED strip lights on individual stair treads one at a time in sequence as a person ascends or descends — creating a waterfall lighting effect. IR or PIR sensors at the staircase entry points detect direction and trigger the sequence automatically.

Q: Can staircase LED strips work without a controller?

A: Yes — strips can connect to a standard on/off switch or motion sensor (all steps on simultaneously). A staircase controller is needed specifically for the sequential step-by-step waterfall activation effect.

Conclusion

The Esysense staircase controller transforms any staircase from a functional necessity into a design centerpiece — sequential waterfall lighting that activates only when in use, consuming zero electricity when the staircase is empty. From a 15-step home installation to a 30-step mall staircase, Esysense covers every scale. Browse staircase controllers and compatible LED strips at esysense.com/products/pir-32-channel-staircase-controller-500w

Written from direct product testing and manufacturer specifications by Esysense Tech Innovations Pvt. Ltd., Ghaziabad, India. All prices, specs and model references are verified against live product listings at esysense.com. Last updated: May 2026
